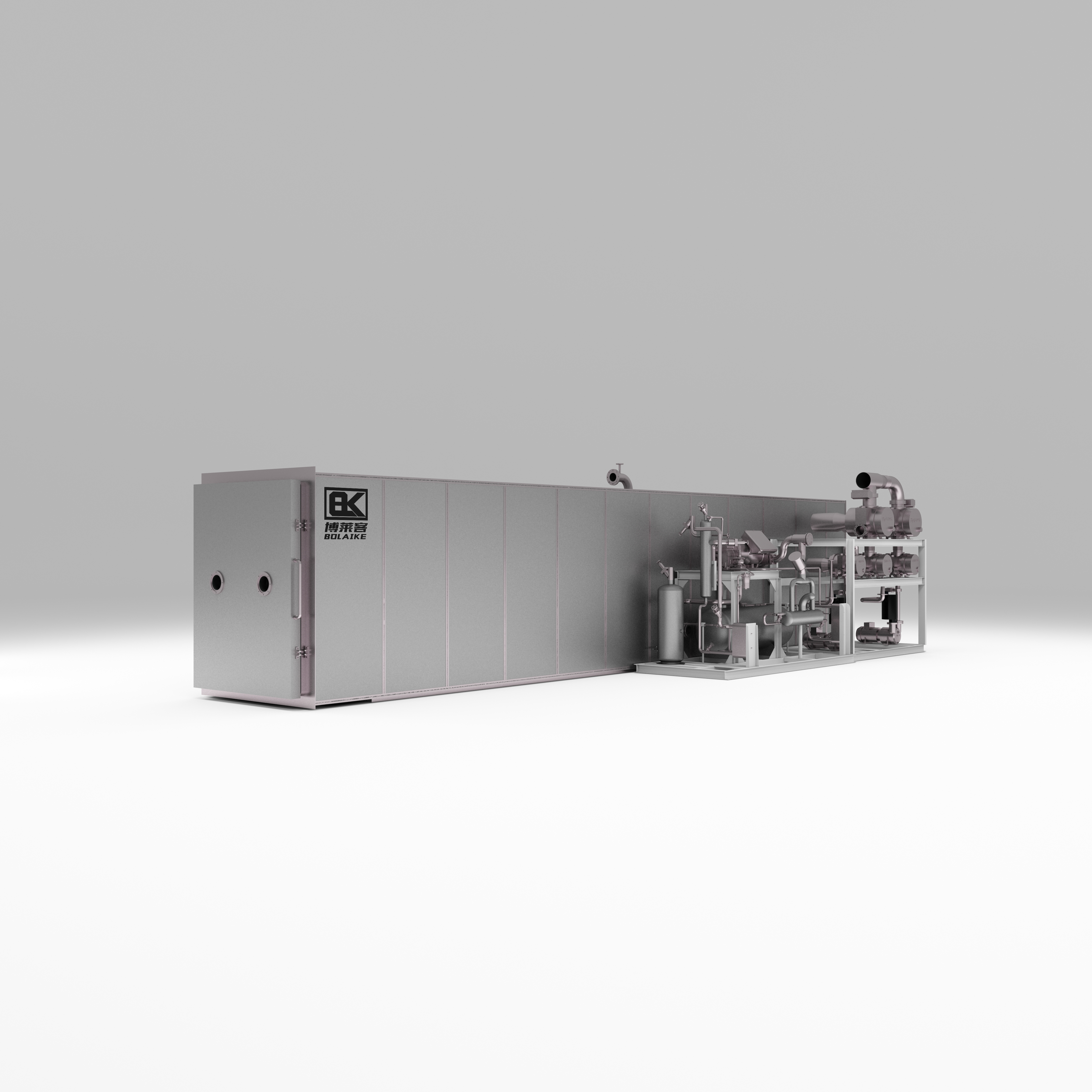

Drying Area: 100m²
Chamber Type: Box-type rectangular design
Application: Pharmaceuticals, Food, Biological materials
Drying Method: Sublimation freeze-drying
Control System: PLC + HMI touch screen
Vacuum System: Dual-stage rotary vane vacuum pump
Cooling Method: Water-cooled condenser
Condenser Temperature: -45°C to -60°C
Shelf Temperature: -50°C to +70°C
Material Shelves: SUS304 stainless steel
Number of Shelves: Customizable (typically 8–12)
Shelf Area: 100m² effective area
Vacuum Range: < 10 Pa
Chamber Material: 304 or 316L stainless steel
Refrigeration Power: High-efficiency compressor
Drying Cycle: Adjustable (8–36 hours)
Batch Capacity: Up to 1,000 kg wet product
Insulation Thickness: 100mm polyurethane foam
Safety Protection: Over-temp, over-pressure, leakage protection
Automation: Fully automated process
Defrosting: Hot water or steam defrost
Door Type: Hinged or sliding
Chamber Pressure Gauge: Digital and analog
Documentation: GMP compliant with IQ/OQ validation
Data Export: USB or Ethernet
Remote Monitoring: Available on request
Power Supply: 380V/50Hz 3-phase (customizable)
Power Consumption: ~120 kW
Compressor Brand: Bitzer / Copeland (optional)
Vacuum Pump Brand: Leybold / Edwards
PLC Brand: Siemens / Omron
Footprint: Approx. 12m x 3m x 3.5m
Weight: ~15,000 kg
Certification: CE / ISO 9001
Service Life: 10–15 years
Warranty: 12–24 months
Installation Support: On-site service available
Maintenance: Scheduled preventive maintenance
Noise Level: ≤75 dB
Color: Industrial grey (customizable)
Usage Scenario: Factory, Cleanroom, Lab production
Delivery Time: 60–90 working days
Customization: Available on request
