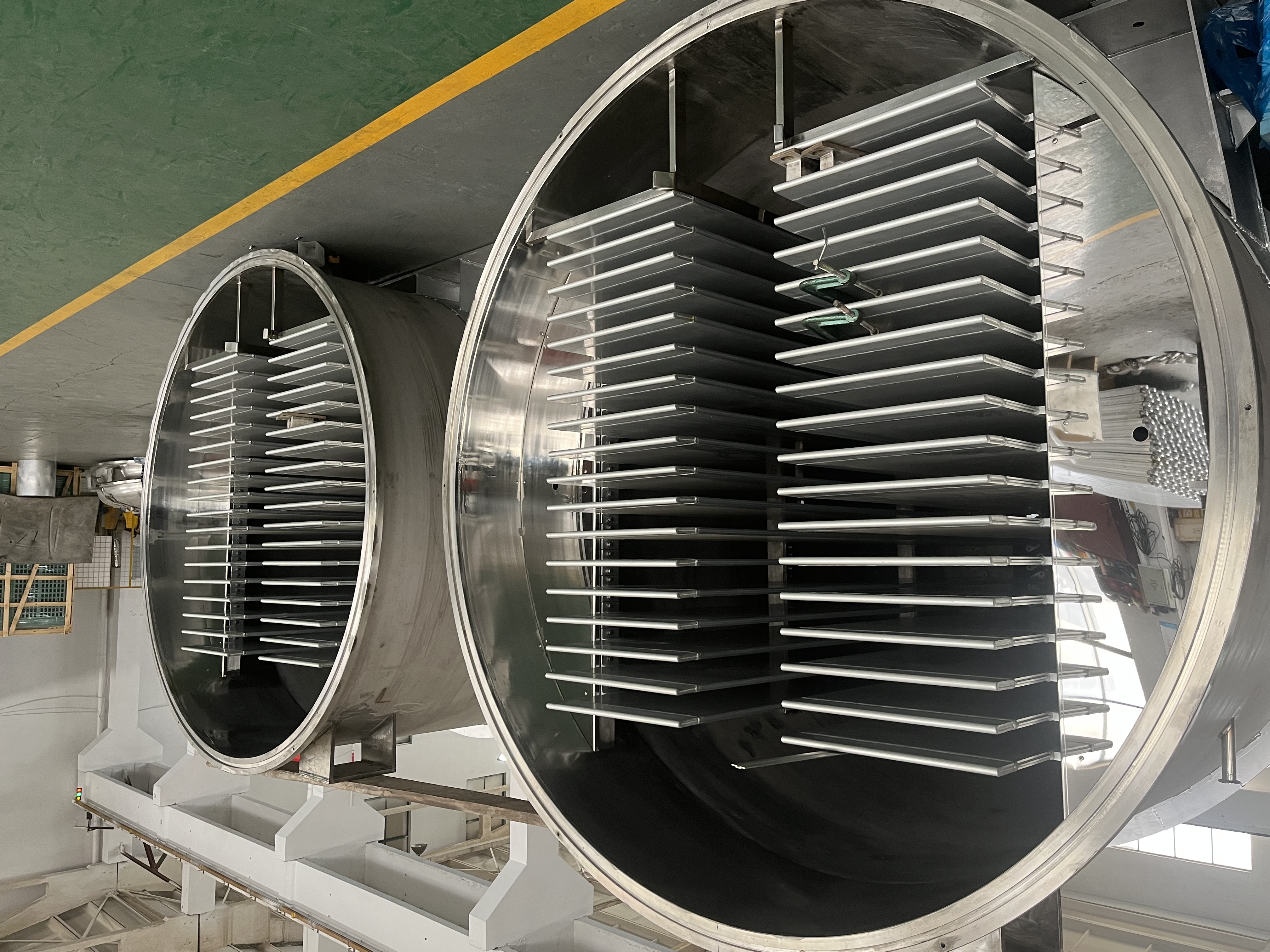

Model: 50㎡ Industrial Freeze Dryer
Effective Area: 50 square meters
Shelves: 304 stainless steel
Number of Shelves: 30 layers
Shelf Size: 1200mm x 800mm
Shelf Spacing: 80 mm
Shelf Temperature Range: -50°C to +70°C
Cooling System: Water-cooled condenser
Condenser Temperature: -60°C
Condenser Capacity: 100 kg/batch
Vacuum System: Two-stage rotary vane pump
Vacuum Limit: ≤5 Pa
Heating Method: Conductive heating
Control System: PLC with touchscreen HMI
Operation Mode: Fully automatic
Power Supply: 380V/50Hz 3-phase
Installed Power: 60 kW
Material: SUS304 stainless steel
Chamber Type: Horizontal cylindrical chamber
Door Type: Front-opening manual/mechanical lock
Door Material: Stainless steel
Vacuum Valve: High vacuum butterfly valve
Sensors: Temperature, pressure, humidity sensors
Refrigerant: R404A or equivalent
Defrosting Method: Hot gas defrosting
Drying Capacity: 500 kg per batch (approx.)
Application: Pharmaceuticals, food, biologicals
Footprint: Approx. 7m x 2.5m
Weight: About 8,000 kg
Installation Environment: Indoor, cleanroom compatible
Shelf Heat Transfer Efficiency: ≥90%
Noise Level: ≤75 dB
Drying Time: 24-36 hours per cycle
Compliance: GMP, CE certified
Vacuum Gauge Type: Capacitance manometer
Monitoring: Remote monitoring via Ethernet
Data Recording: USB and cloud storage support
Safety Features: Overheat, overpressure, power failure protection
Maintenance Access: Side panels and rear entry
Service Life: 10+ years with regular maintenance
Custom Options: CIP/SIP, tray design, shelf layout
