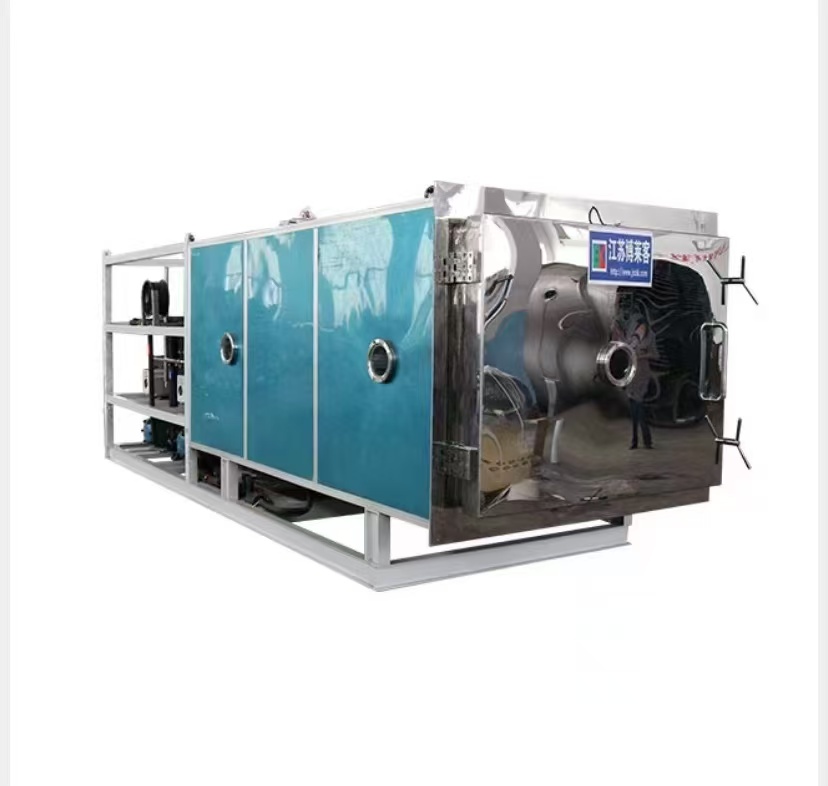

The 10m² pharmaceutical freeze dryer is designed for high-standard medicine production, offering reliable lyophilization performance with advanced vacuum and refrigeration systems.
Model: 10m² Pharmaceutical Freeze Dryer
Application: Medicine, biopharmaceuticals, health products
Type: Vacuum lyophilizer
Chamber size: 10 square meters effective area
Shelf area: 10 m²
Chamber material: SUS 316L stainless steel
Frame structure: SUS 304 stainless steel
Door type: Stainless steel vacuum-sealed door
Cooling system: Cascade refrigeration system
Refrigerant: Environmentally friendly refrigerant
Vacuum pump: Oil-sealed rotary vane pump + Roots pump
Ultimate vacuum: ≤ 5 Pa
Condenser temperature: -45℃ to -85℃
Shelf temperature range: -50℃ to +70℃
Temperature uniformity: ±1℃
Heating method: Electric heating / circulating heating
Control system: PLC + touch screen
Data recording: GMP-compliant automatic recording
Alarm system: Over-temperature, over-pressure, power failure
Operation mode: Automatic / Manual
Ice capacity: 200~300 kg per batch
Defrosting method: Hot water circulation
Loading method: Manual or automatic
Product tray material: Stainless steel
Number of shelves: 6–10 layers (customizable)
Shelf spacing: Adjustable
Power supply: 380V / 50Hz / 3Phase
Installed power: ~45–60 kW
Noise level: ≤ 75 dB
Control accuracy: Temperature ±0.5℃, Vacuum ±5%
Cooling water consumption: 8–12 m³/h
Automation: Fully automatic with recipe storage
Software: GMP & FDA compliant
Validation: IQ/OQ/PQ support
Surface treatment: Polished, Ra ≤ 0.6 μm
Safety features: Emergency vent valve, pressure relief
Applicable standards: CE / ISO / GMP
Optional features: CIP (Clean-in-place), SIP (Steam-in-place)
Usage environment: Pharmaceutical factories, biotech labs, hospitals
Durability: 15+ years service life
Warranty: 12–24 months
Customization: Chamber size, shelf configuration available
