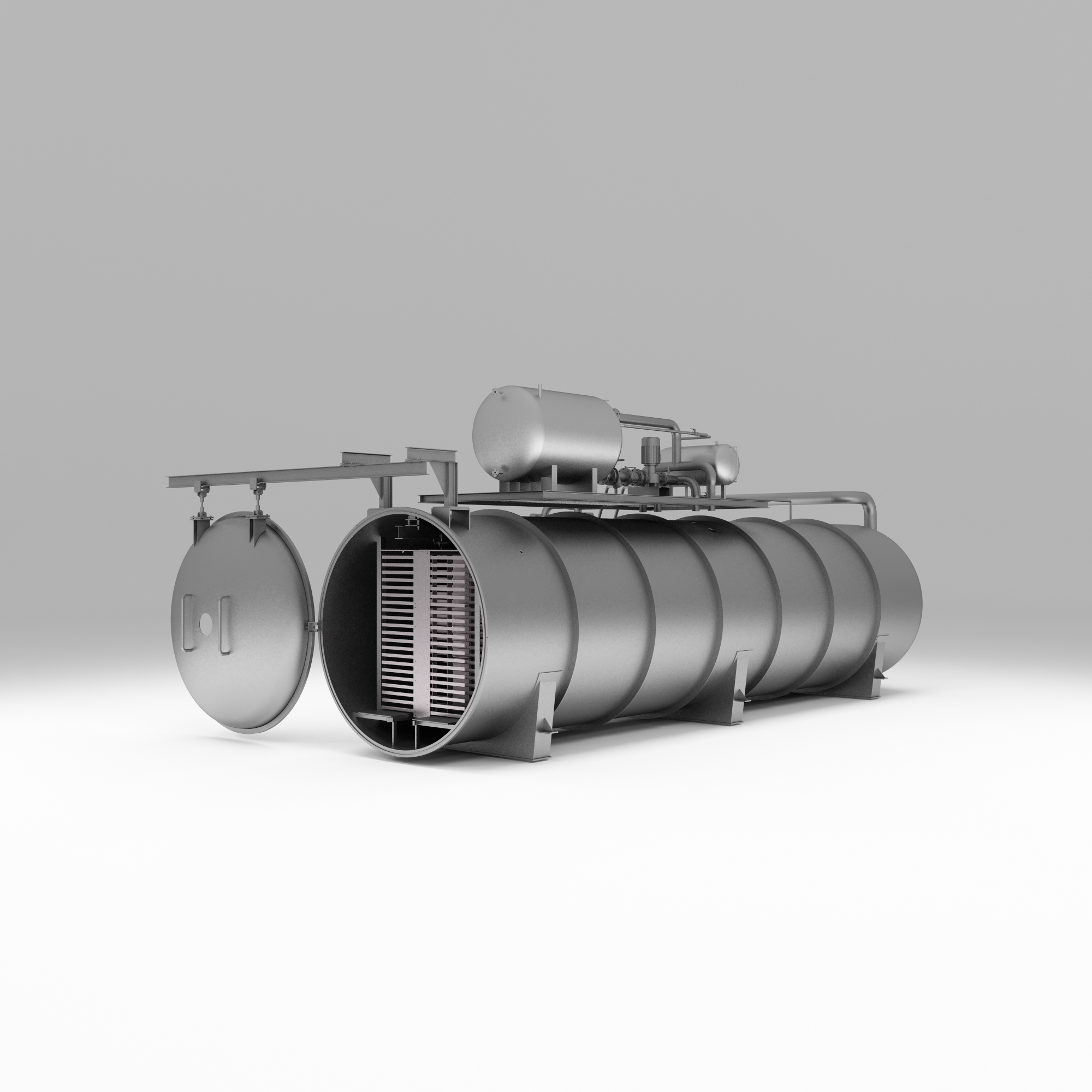

Product Name: Industrial Freeze Dryer
Freeze-Drying Area: 200 square meters
Application Fields: Pharmaceutical, Food, Chemical, Biological, Laboratory
Chamber Type: Cylindrical stainless steel
Heating Method: Thermal oil heating
Cooling System: Mechanical refrigeration
Condenser Type: Built-in condenser
Tray Configuration: Multi-layer stainless steel trays
Tray Material: SUS304 stainless steel
Outer Shell Material: SUS316L stainless steel
Control System: PLC automatic control
Temperature Accuracy: ±1°C
Pressure Accuracy: ±5Pa
Ultimate Vacuum: ≤5Pa
Vacuum Pump: Dual-stage rotary vane pump
Operating Noise: ≤70dB
Installation Type: Floor-mounted
Operation Interface: Touchscreen + Remote control
Data Recording: Full process data logging and export
Safety Features: Over-temperature, over-pressure, water shortage, leakage protection
Cooling Method: Water-cooled
Water Circulation: Closed-loop water cooling system
Alarm System: Audio-visual alarm
Power Supply: 380V / 50Hz (3-phase 5-wire)
Power Consumption: 60–100KW
Automation Level: Fully automatic
Working Ambient Temperature: +5~+30°C
Working Humidity: ≤80% RH
Viewing Window: None
Maintenance: Modular design, easy maintenance
Vacuum Gauge Type: Capacitive vacuum gauge
Safety Valve: Equipped
Steam Sterilization: Optional
GMP Compliant: Yes
Machine Dimensions: Approx. 8m x 2.5m x 3m
Machine Weight: Approx. 15 tons
Loading/Unloading: Front open door, manual or robotic handling
Door Opening Type: Horizontal sliding rail
Insulation Layer: Polyurethane + Stainless steel jacket
Service Life: Over 10 years
Environmental Compliance: Meets national standards
Factory Testing: Vacuum, temperature, and performance tests
Installation & Commissioning: Provided
After-Sales Support: 24/7 technical assistance
Suitable Materials: Powder, blocks, liquids
